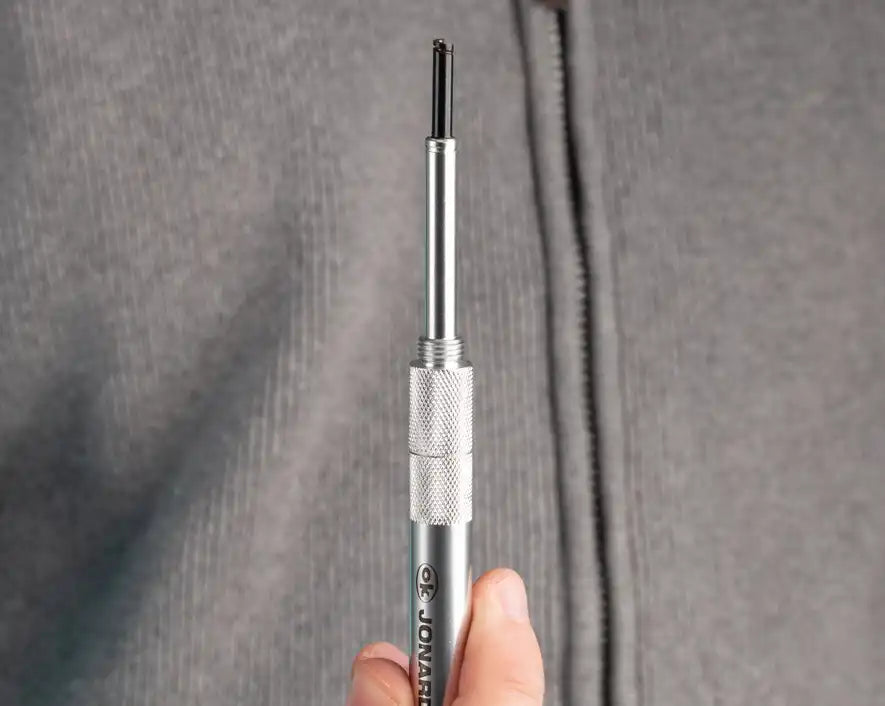

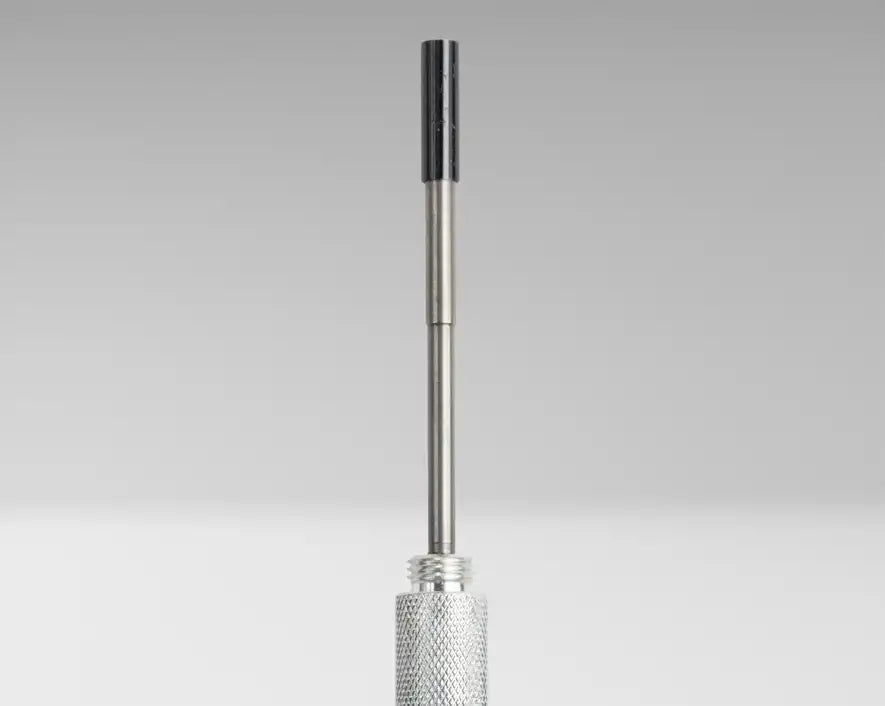

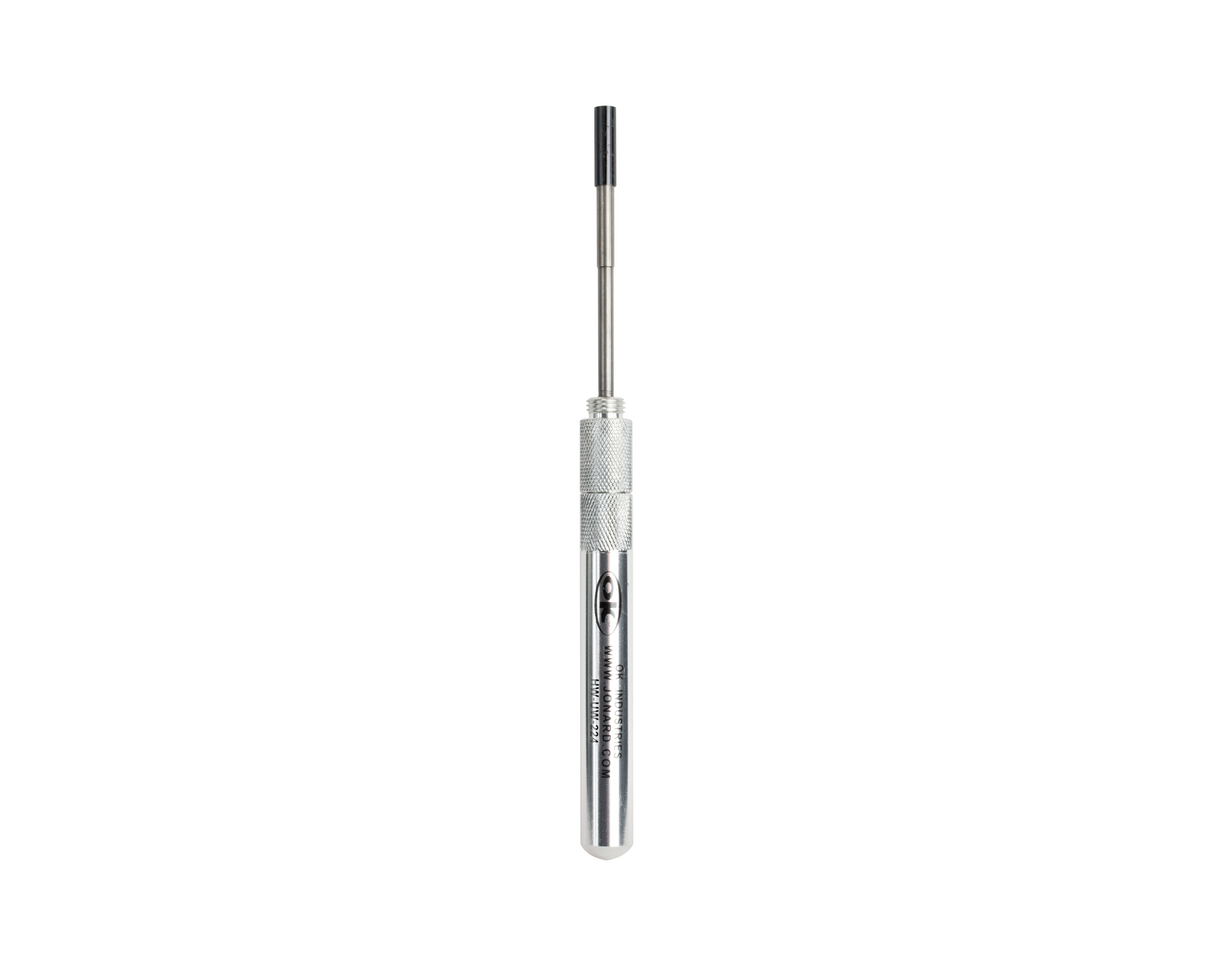

Wrap-Unwrap Tool, 22-24 AWG | HW-UW-224

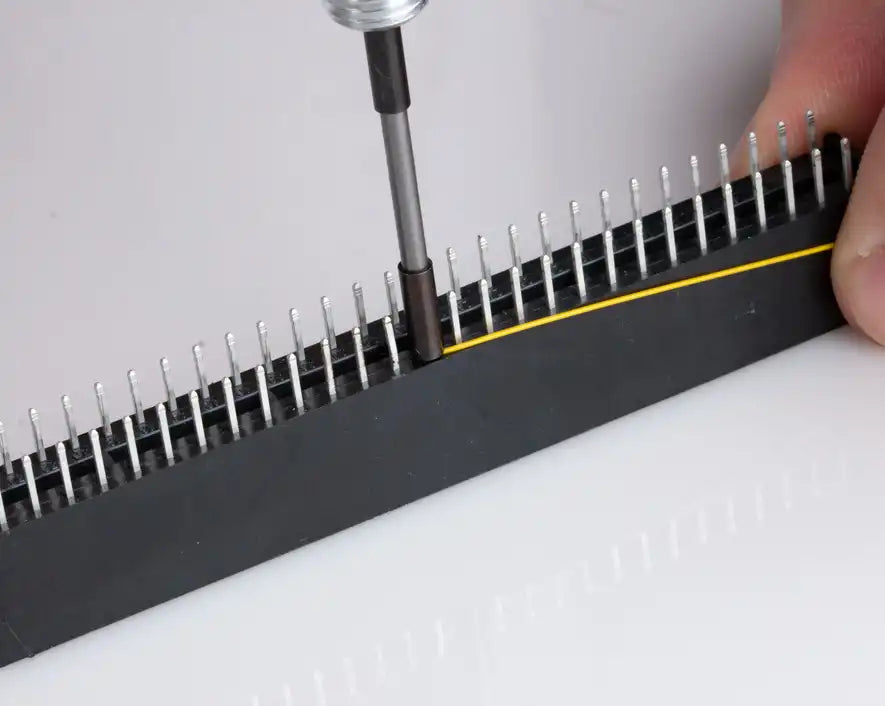

Designed to wrap or unwrap wire on binding posts, this hand wrap tool is perfect for use on 22-24 AWG (0.65 mm - 0.50 mm diameter) wire.

• Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical
• Switch from wrapping to unwrapping quickly by changing the cap from one end to the other

Specifications

• Wrap Type: Regular
• Wrap Wire Gauge: 22-24 AWG (0.65-0.50 mm)
• Wrap Terminal Hole Diameter: 0.075" (1.90 mm)
• Wrap Terminal Hole Depth: 0.807" (20.50 mm)
• Wrap Outside Diameter: 0.218" (5.54 mm)
• Wrap Post Size: 0.045" (1.14 mm)
• Unwrap Wire Gauge: 20-26 AWG (0.80-0.40 mm)
• Unwrap Terminal Hole Diameter: 0.070" (1.77 mm)
• Unwrap Terminal Hole Depth: 1" (25.40 mm)
• Unwrap Outside Diameter: 0.156" (3.96 mm)
• Handle Type: Aluminum
• Length: 7(17.78cm)
• Weight: 0.08 lb (36.32 g)
• UPC #: 811490010499
