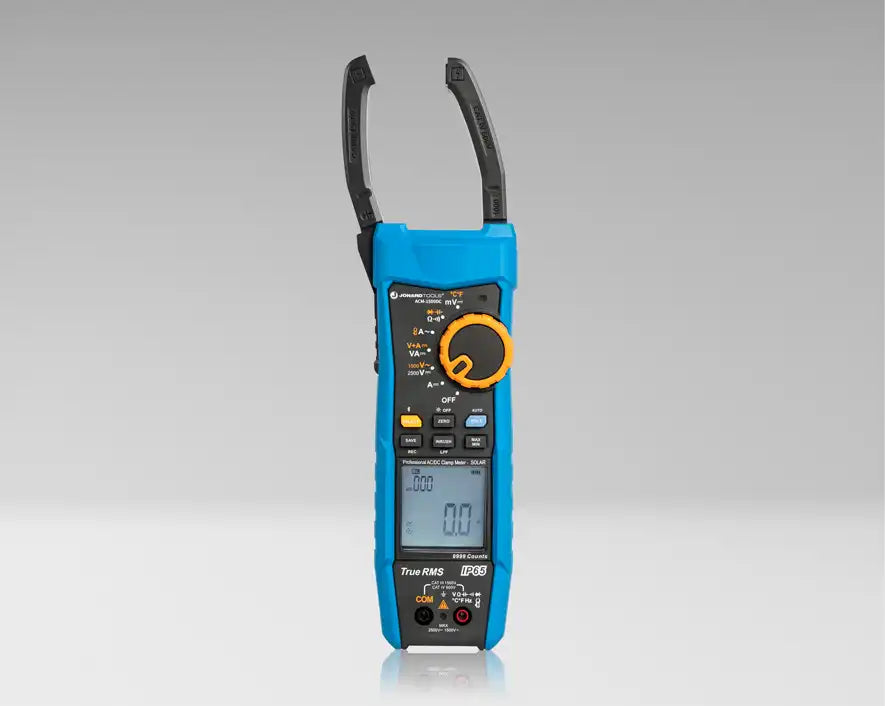

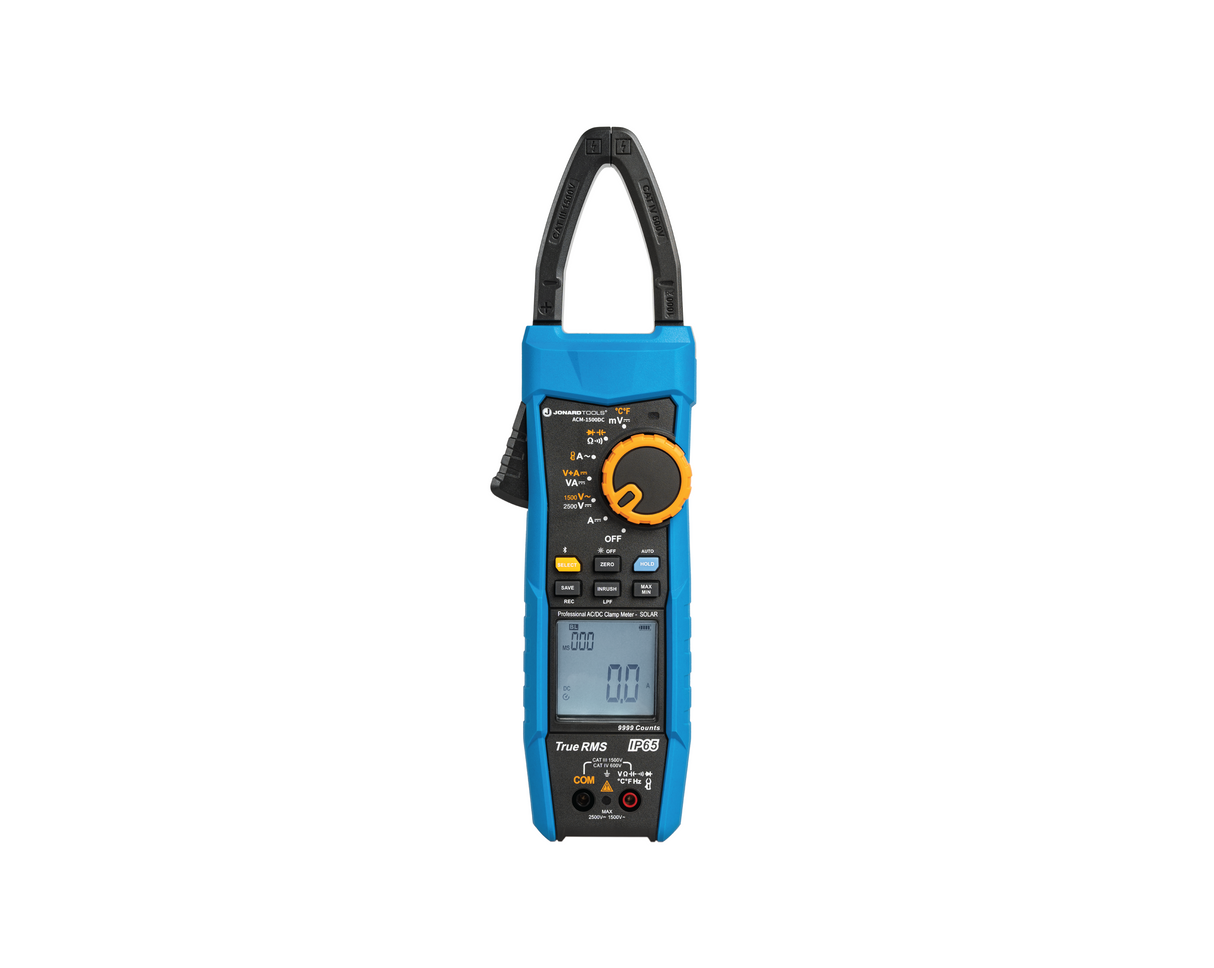

Solar+ Clamp Meter CAT III 1500 V | ACM-1500DC

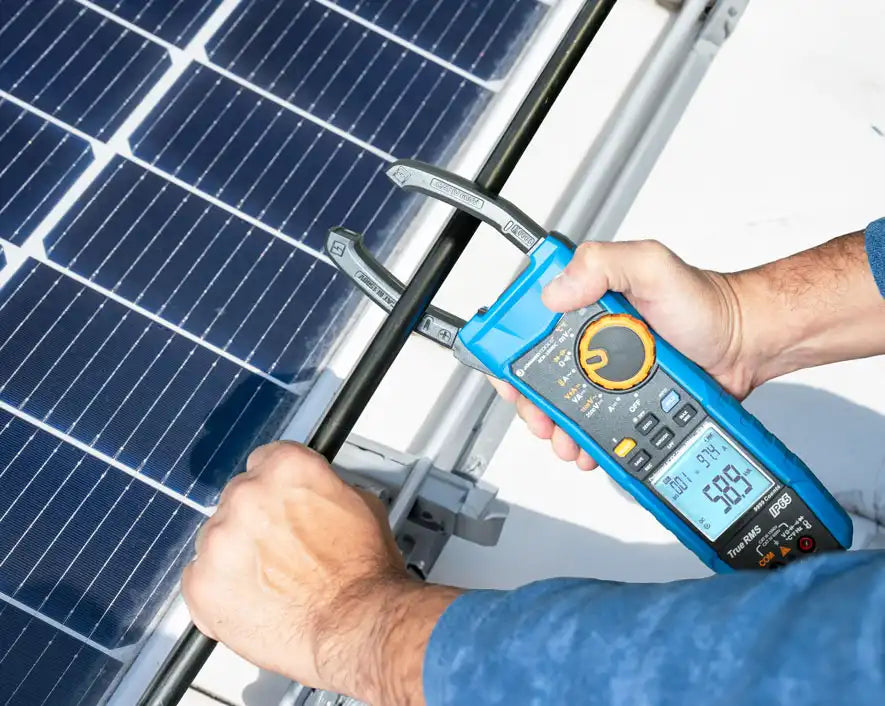

Elevate your high voltage DC work with the Jonard ACM-1500DC CAT III 1500 V True-RMS Clamp Meter. This versatile device is tailor-made for professionals working in solar arrays, wind power farms, electric railways, data centers, and uninterruptible power supplies. It excels in precision, measuring up to 2500 V DC, 1500 V AC, and up to 999.9 A DC or AC through the clamp jaws. The slim jaw design ensures access to even the most congested combiner boxes, and the test leads are CAT III 1500 V DC rated for peace of mind.

• Measures up to 2500 V DC and 999.9 A DC or AC through its slim tip clamp jaws
• CAT IV 600V, CAT III 1500V, Class 2, Double Insulation Safety Rating to protect from electrical shocks

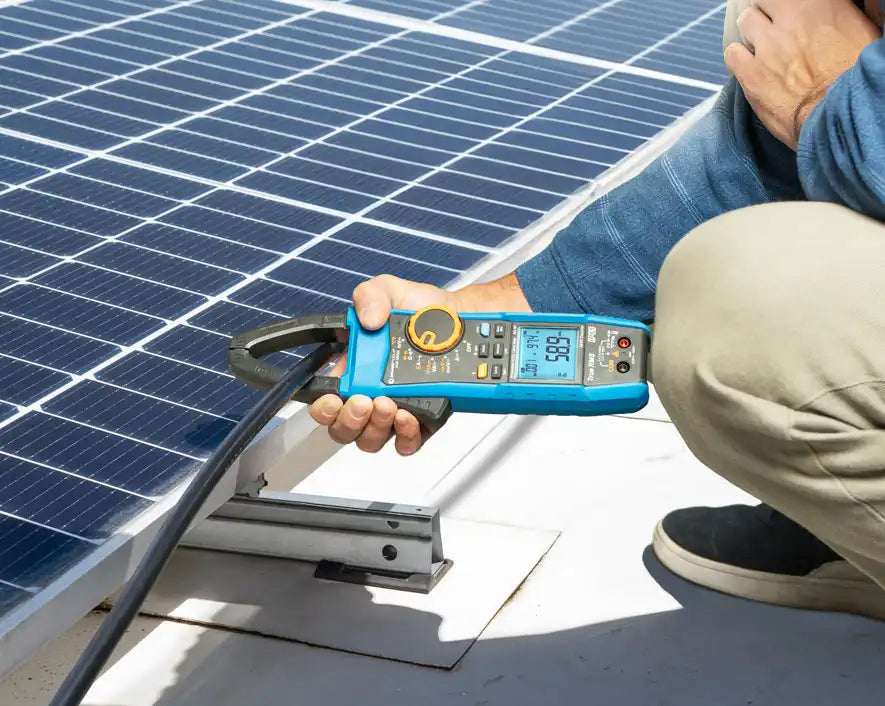

• Jaw opening is perfect for cables, such as solar cables, whose conductors are a maximum of 1.38" (35 mm) in diameter
• Test results can be saved onto onboard storage and can be  transferred via Bluetooth
• IP 65 rating for dust and water resistance for ultimate protection while working outdoors

Specifications

• Max AC Current: 999.9 A
• Max DC Current: 999.9 A
• Max AC Voltage: 1500 V
• Max DC Voltage: 2500 V
• Power (DC): 999.9 kVA/2500 kVA
• Resistance: 999.9 Ohm/9.999 kOhm/99.999 Mohm
• Capacitance: 100.0 uF/1000 uF
• Temp: '-40°C~400°C/-40°F~752°F
• Jaw Opening: 35 mm
• Overvoltage Category: CAT III 1500V/CAT IV 600V
• Bluetooth App: BT 5.0
• Inrush Current: ✓
• PEAK: ✓
• LPF: ✓
• True RMS: ✓
• Dimensions: 12.25 in x 5.2 in x 2.5 in (31.12 cm x 13.21 cm x 6.35 cm)
• Weight: 2.04 lb (924.344 g)
• UPC #: 810132435454
