Quick Clip Insertion Tool | JIC-950C

Designed to cut and insert 22 and 24-gauge wire into terminal blocks, this multipurpose wire insertion tool is the perfect tool for performing several critical functions for wire insertion.

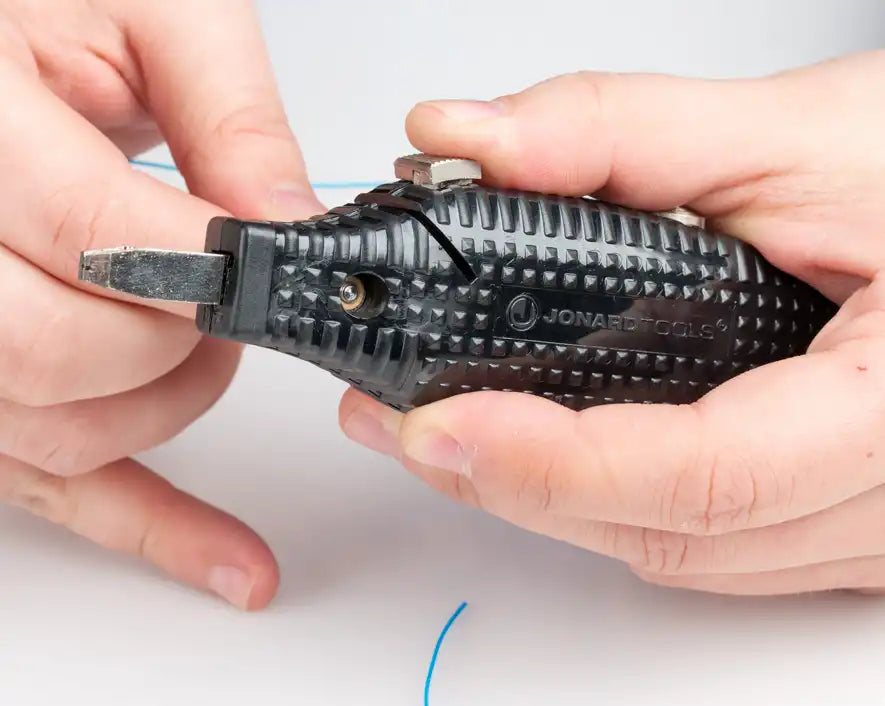

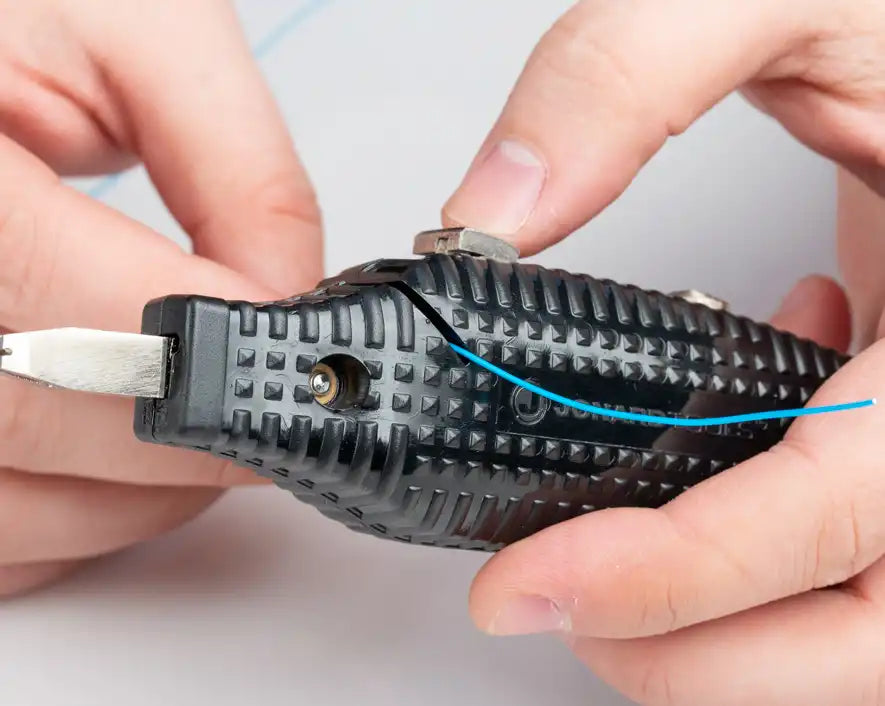

• Wire cutter cuts 22 and 24 AWG (0.65 mm and 0.51 mm diameter) wire
• Hook on back of unit is used for jumper and back-tap removal

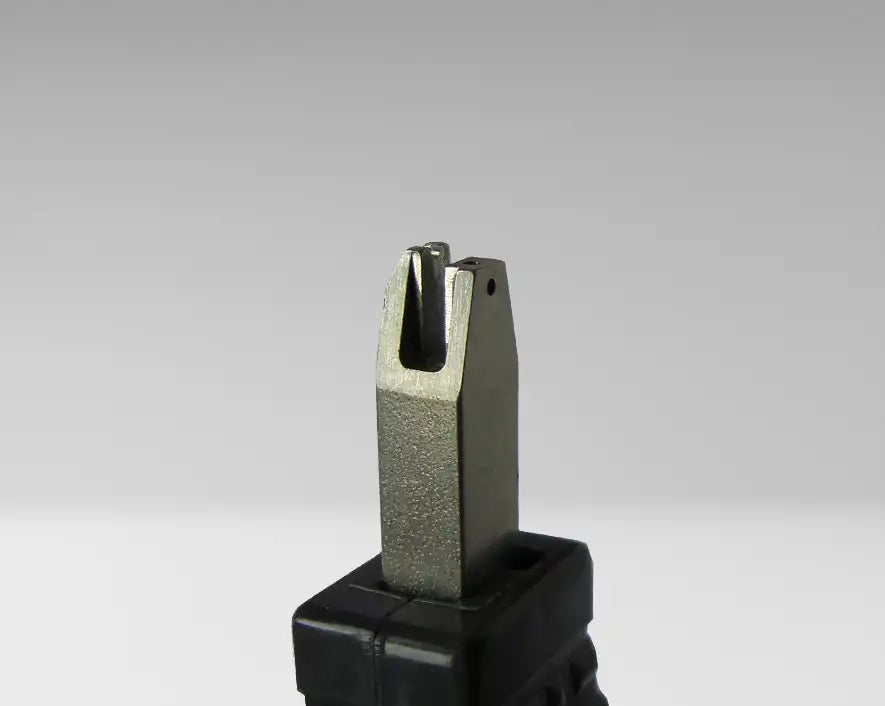

• Bit inserts 22 and 24 AWG (0.65 mm and 0.51 mm diameter) wire into the appropriate terminal block

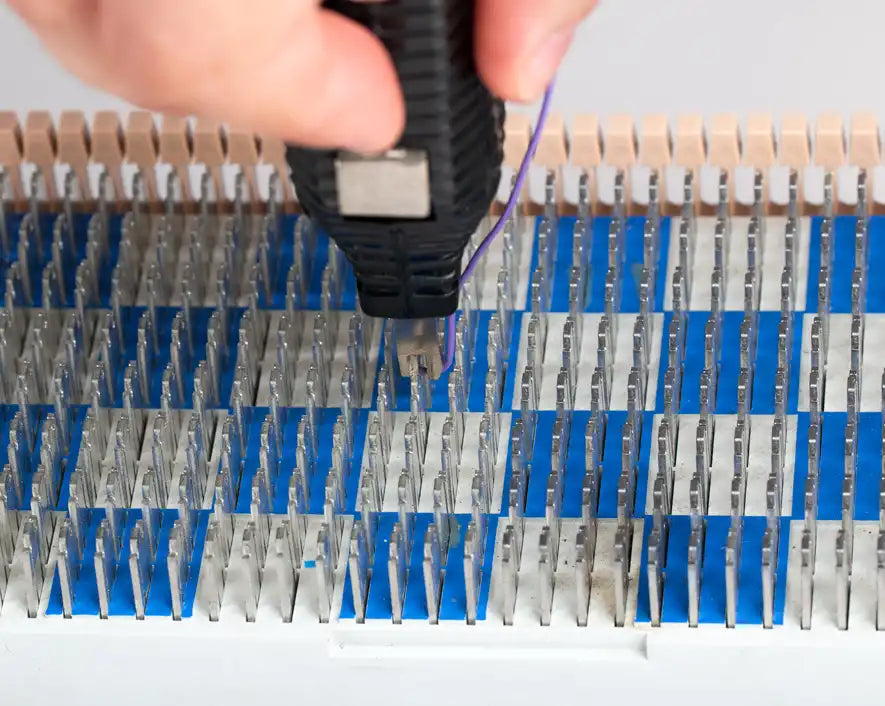

• Ideal for use on 3-beam (112-type) and 4-beam (78-type) terminal blocks in Cosmic & Cosmic II distributing frames

Specifications

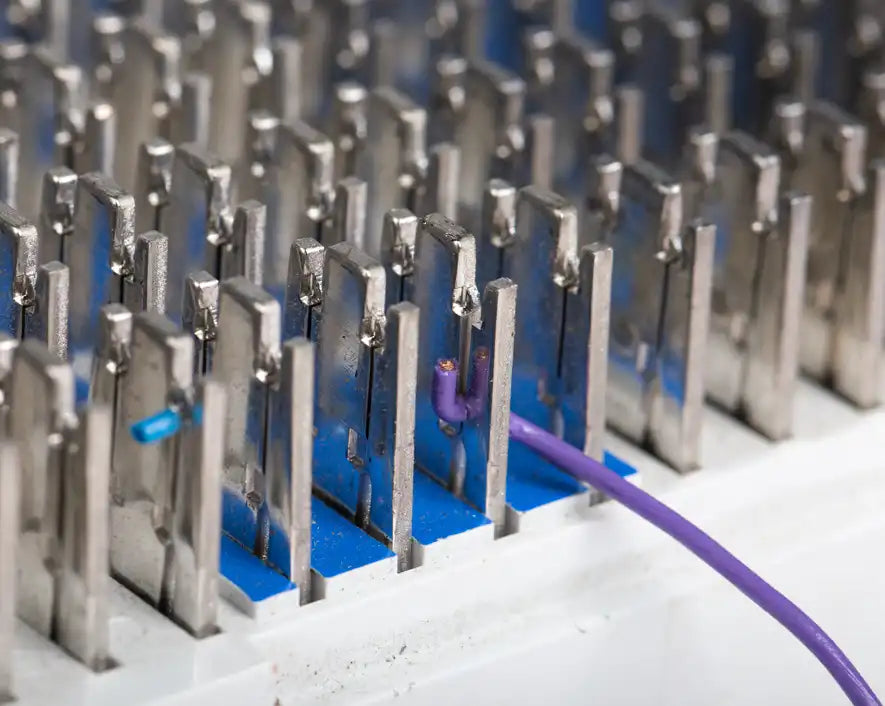

• Block Type: 3-beam (112-type) and 4-beam (78-type) terminal blocks
• Functions: Insertion, Cutting
• Cable Diameter: 22 and 24 AWG (0.65 mm and 0.51 mm diameter)
• Dimensions: 6 in x 1.75 in x 1.21 in (15.24 cm x 4.45 cm x 3.07 cm)
• Weight: 0.28 lb (126.212 g)
• UPC #: 811490011991
