Precision Microduct Scoring Tool, 5–16 mm | FS-2025

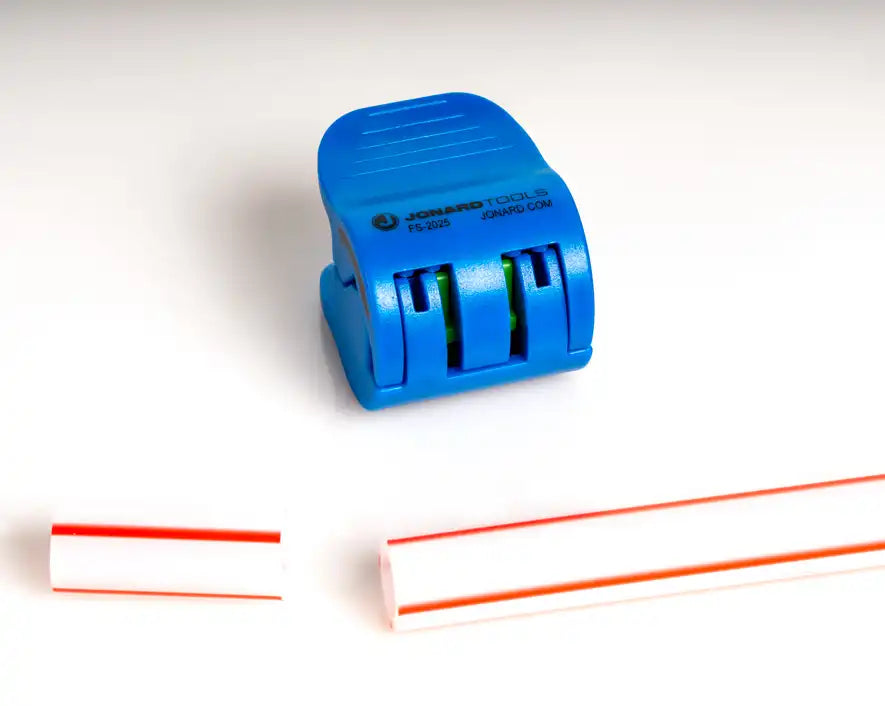

The Jonard Tools Microduct Scoring Tool is perfect for scoring and ringing 10/8 and 12/10 fiber optic microducts without damaging the fibers inside.

• Unique design allows you to score and ring 10/8, 12/10, and 14/12 fiber optic microducts without any adjustments to the tool
• Precisely scores microducts from 5 mm-16 mm (0.20"-0.63") in diameter with a wall thickness of 2.0 mm-2.5 mm

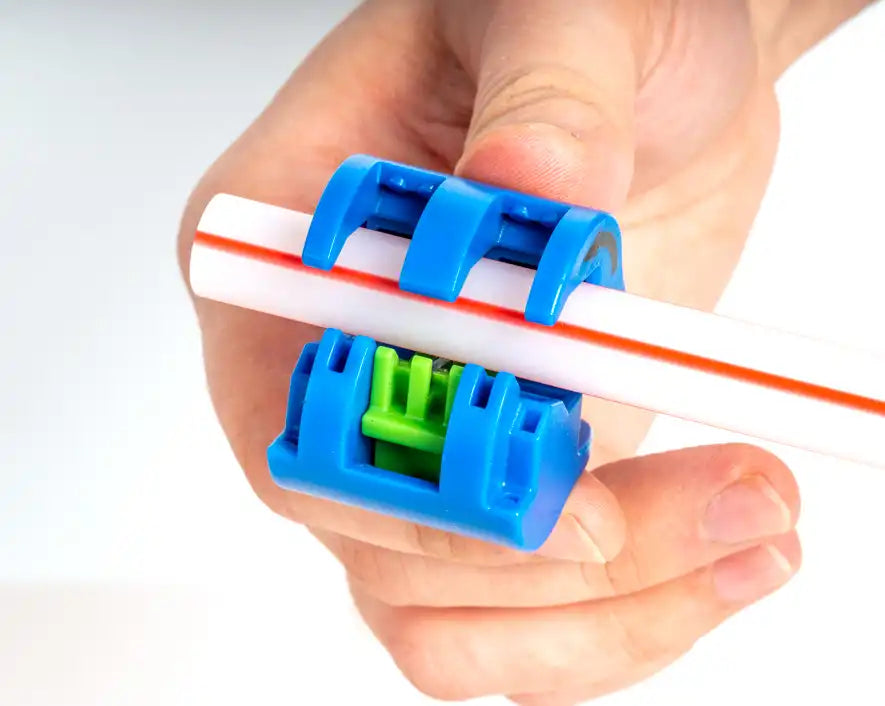

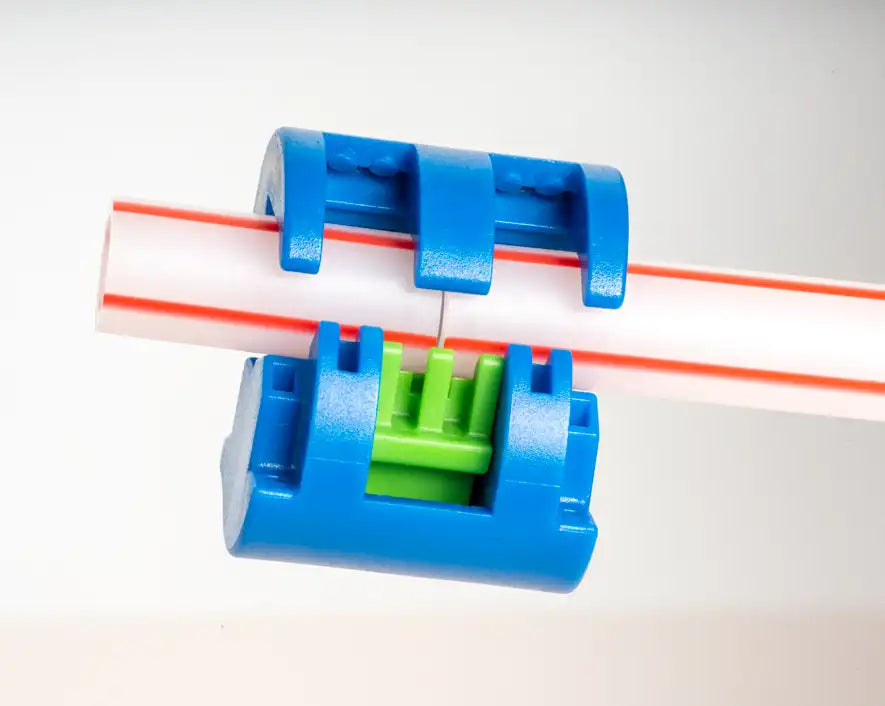

• Wide jaws curl around the microducts, holding them in place while scoring

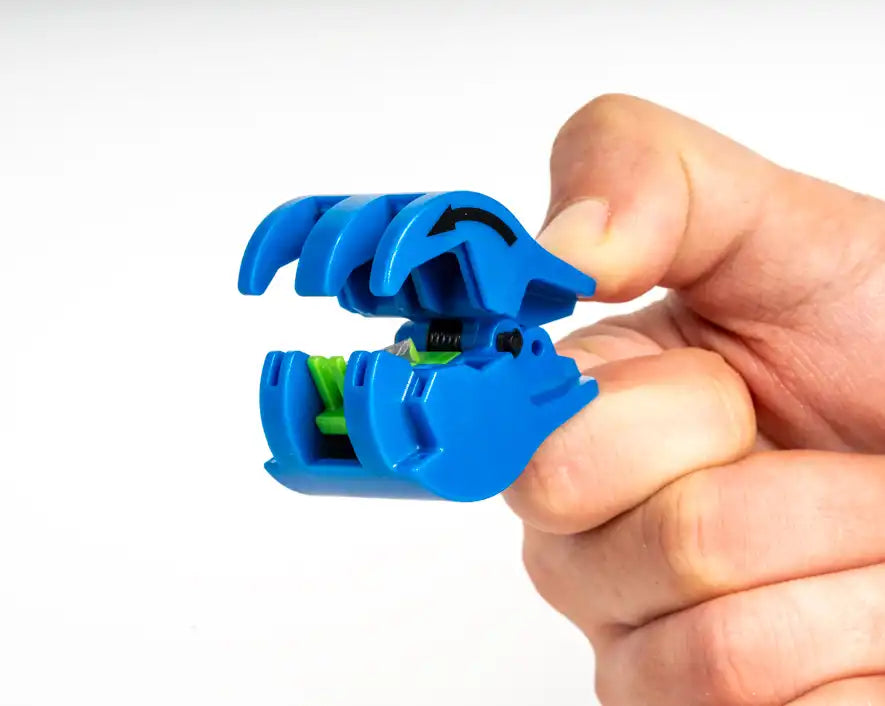

• Spring-loaded butterfly clip makes it easy to open and position it perfectly on microducts
• Includes the FS-2025RB blade, but also compatible with FS-1080RB and FS-1416RB blades for other blade depths
• Replacement Blades available: FS-2025RB, FS-1080RB, and FS-1416RB

Specifications

• Microduct Wall Thickness: 2.0-2.5 mm (0.079"-0.098")
• Microduct Diameter Range: 5.0-16.0 mm (0.20"-0.63")
• Blade Depth: 2.0 mm (0.079")
• Dimensions: 1.79 in x 1.38 in x 1.29 in (4.53 cm x 3.49 cm x 3.28 cm)
• Weight: 0.07 lb (29.964 g)
• UPC #: 810132435959
