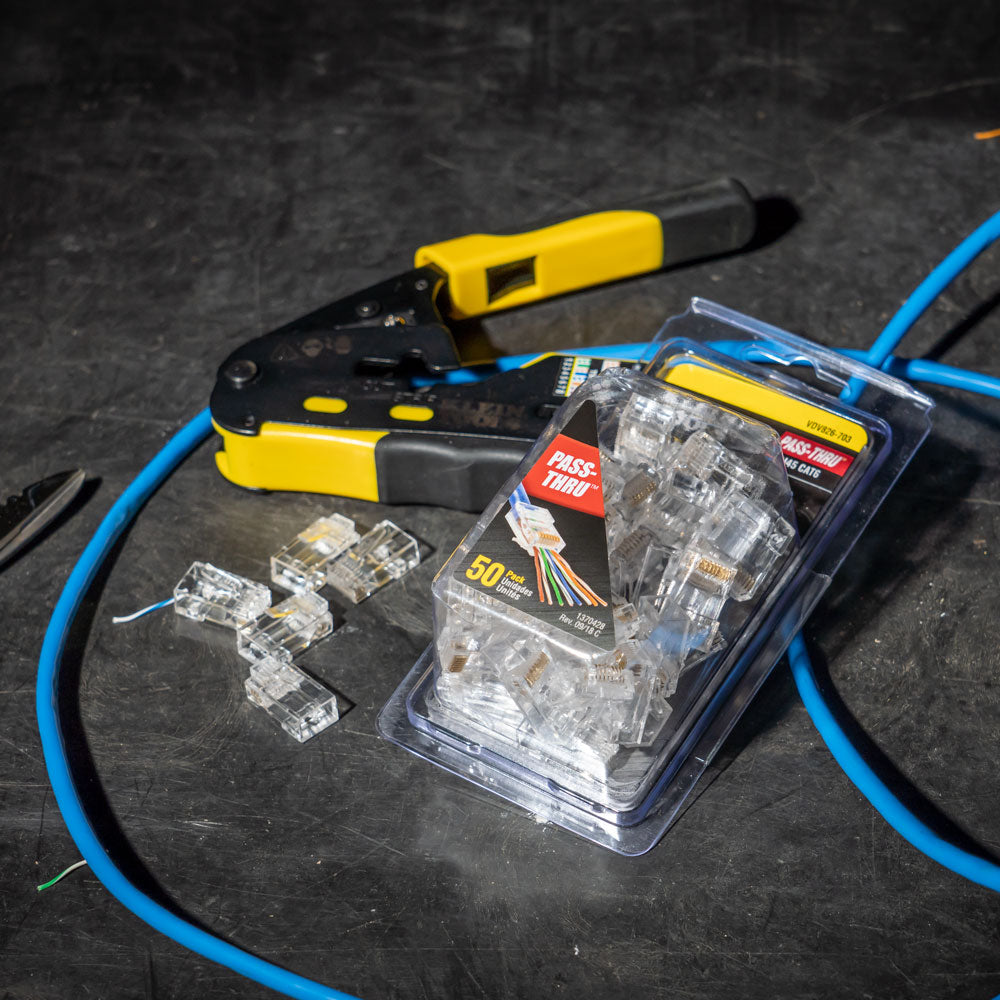

Pass-Thru™ Modular Data Plug, RJ45-CAT6, 50-Pack | VDV826-703

Exclusive Klein-designed Pass-Thru™ modular plugs for fast, reliable connector installations for and data applications. Cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper VDV226-110, and eliminates wasted materials. These CAT6 connectors meet or exceed all Power over Ethernet (PoE) standards. Use with Klein Tools Pass-Thru™ Modular Crimper, VDV226-110.

• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
• CAT6 cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
• 50 µ-inch minimum gold plating on all contact surfaces
• Fully compliant with Power Over Ethernet (PoE and PoE+) standards
• Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated, RoHS compliant

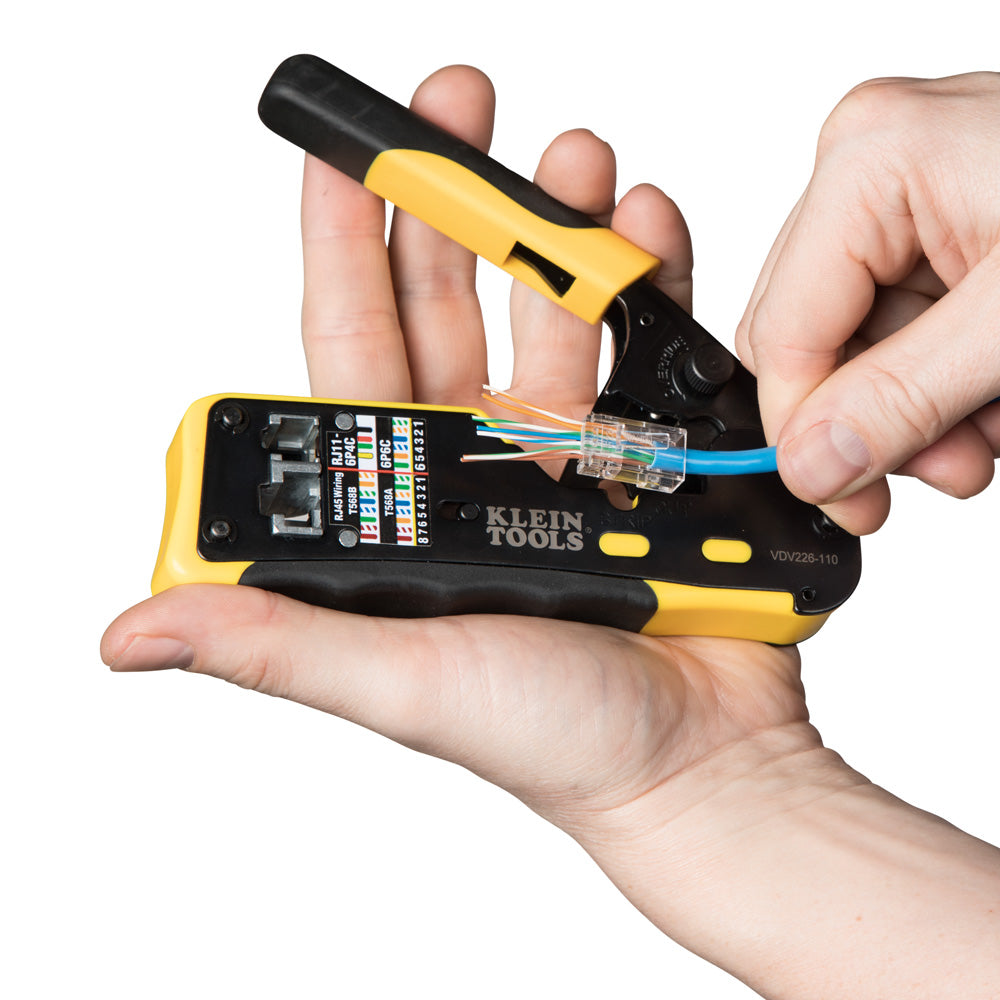

• For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110
• 50-Pack
• 8 position, 8 contact Pass Through style data plug for solid or stranded cable

Specifications

• Type: Modular

• Application: Voice and Data

• Special Features: Pass-Thru Technology; Meets All POE Standards

• Overall Length: 0.875'' (2.2 cm)

• Overall Height: 0.453'' (1.2 cm)

• Overall Width: 0.094'' (0.2 cm)

• Material: PVC Plastic; Gold Plated Contacts

• Connector Type: RJ45

• Cable Type: CAT6

• Position & Contacts: 8P 8C

• Connector Color: Clear

• Solid Conductor Wire: Yes

• Stranded Conductor Wire: Yes

• Package Quantity: 50

• Weight: 4.8 oz (136 g)
