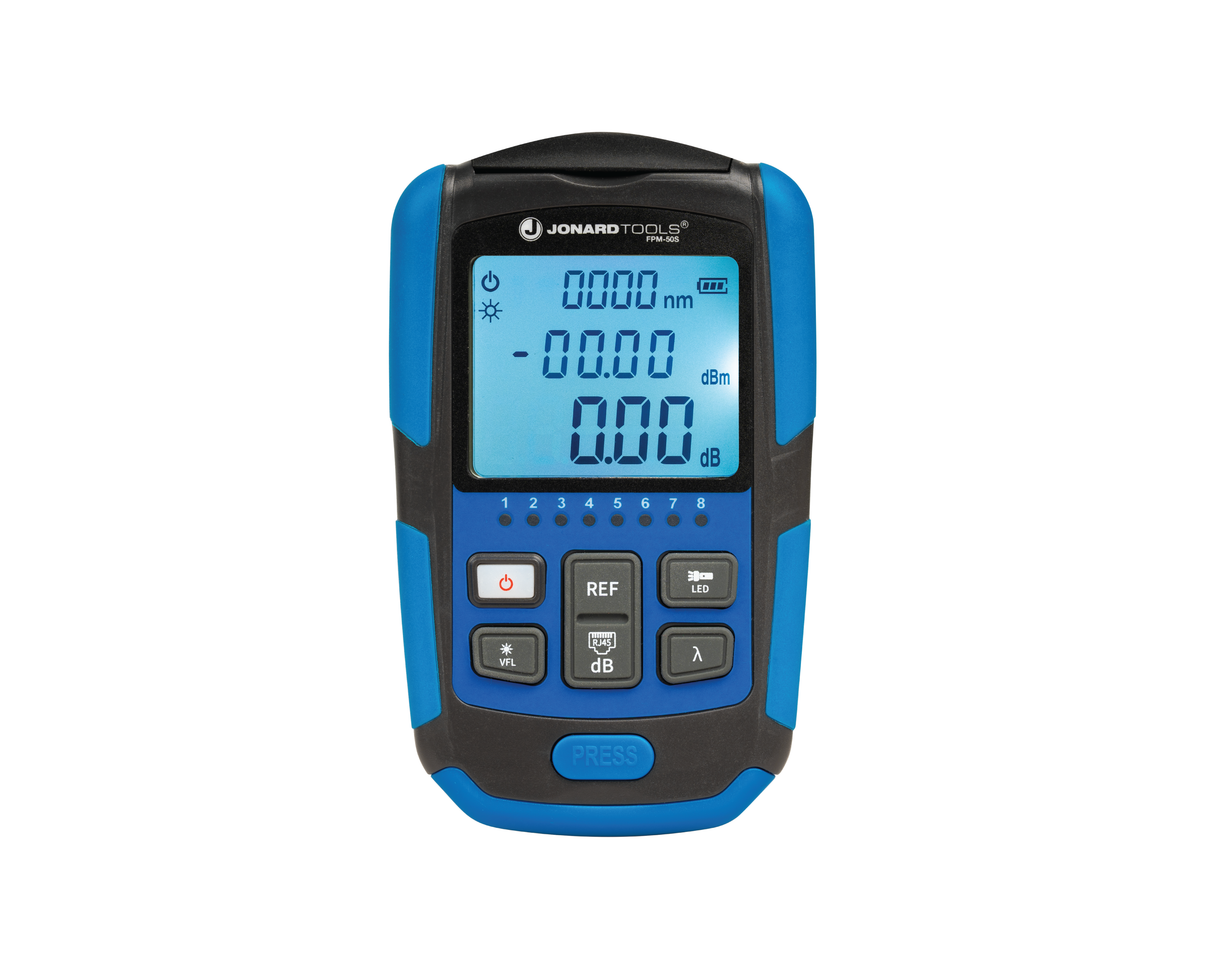

Mini Optical Power Meter, (-50 to +26dBm) | FPM-50S
Regular price
$199.95
Regular price

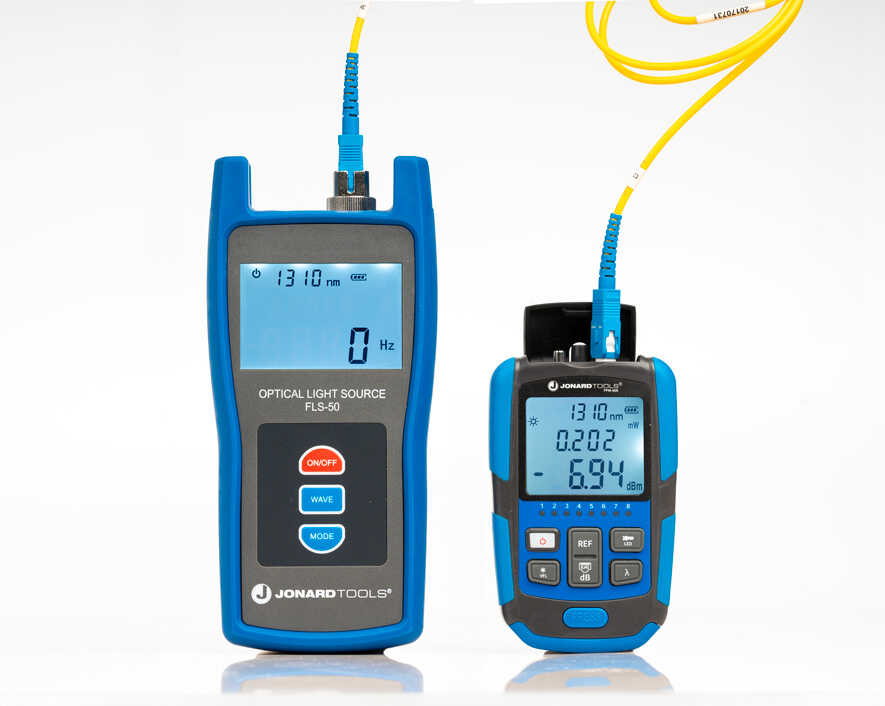

The Jonard Tools Mini Optical Power Meter is perfect for measuring both the absolute optical power and relative power loss in fiber optic cables. It also features a built-in visual fault locator and network cable tester and remote. This power meter features the following:
- Measures power using a wide variety of wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
- Measures 10 preset calibrated wavelengths with high precision to determine absolute or relative power

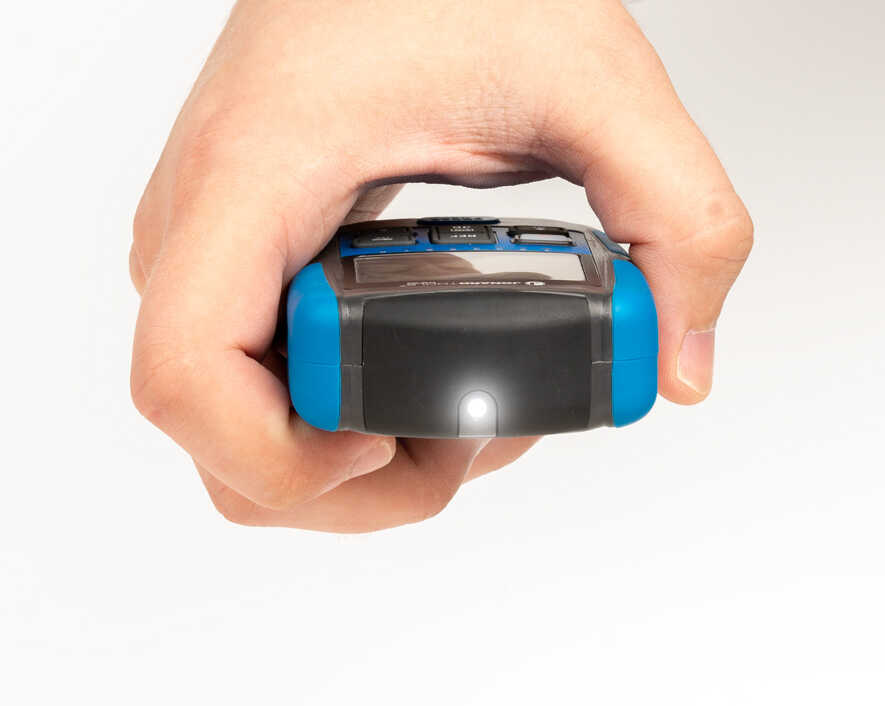

- LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life
- Built-in 2 mW visual fault locator (VFL) identifies faults in fiber cable in a pinch

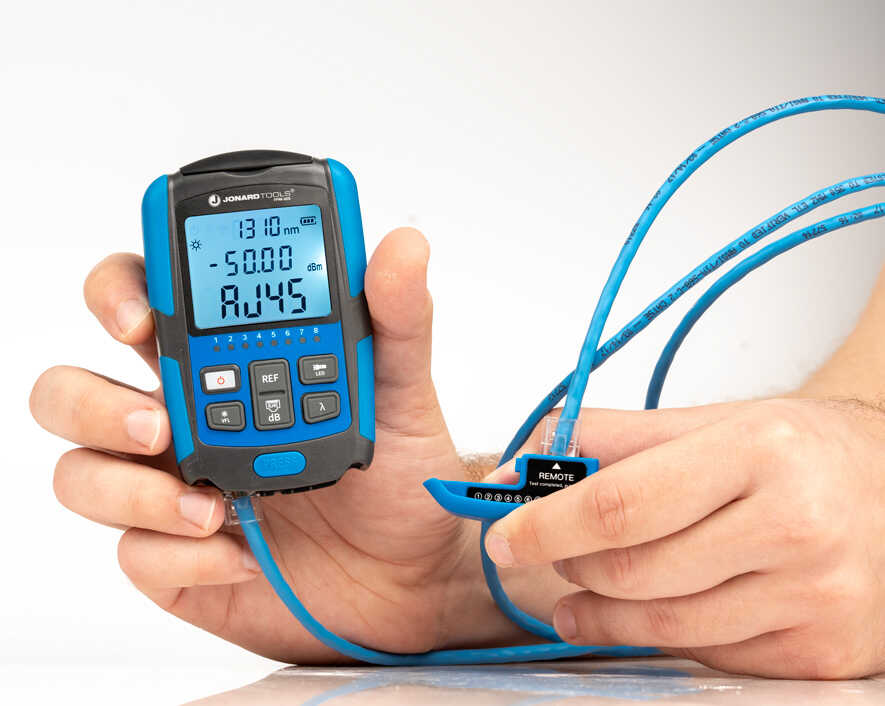

- Tests RJ45 connectorized network cables using built-in remote

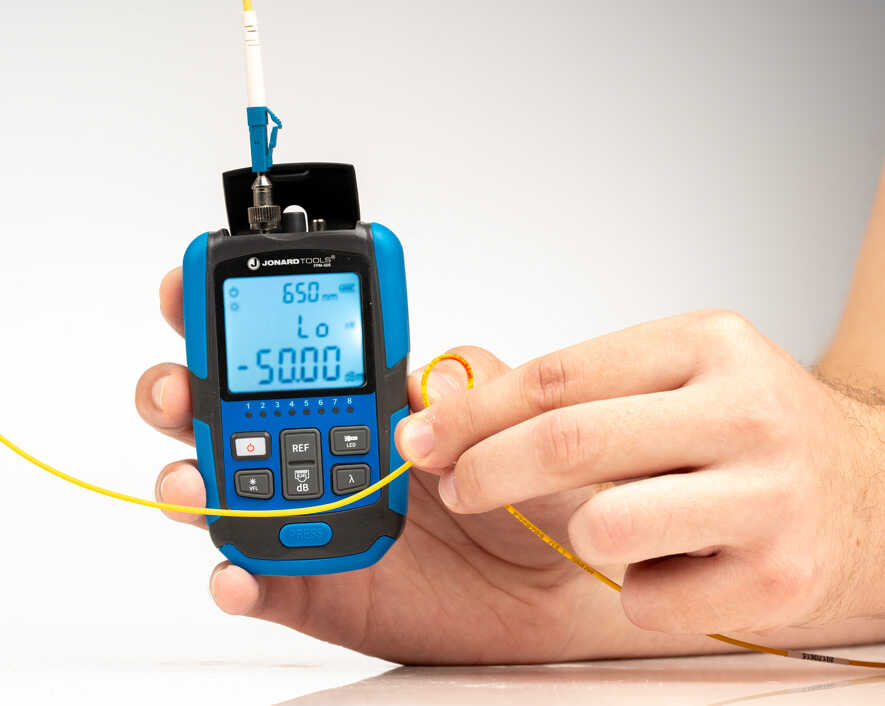

- Comes with FC and LC adapters so that fiber connectors can be directly connected to the tool
- The FC/SC adapters are for APC/PC/UPC connectors
This product includes:
- Mini Optical Power Meter
- Instruction Manual
- (2) AAA Batteries (required for operation)
- FC Adapter
- LC Adapter
Specifications
Connector Types |
FC (APC/PC/UPC) & LC (PC/UPC) |
|---|---|
Calibrated Wavelengths (nm) |
850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650 nm, ≤ ± 0.2 dB |
Detector Type |
InGaAs |
Measurement Range |
-50 dBm to +26 dBm |
Single Mode Range |
980, 1270, 1310, 1490, 1550, 1577, 1625, 1650 nm |
Multi Mode Range |
850, 1300 nm |
XGSPON Range |
1270, 1577 nm |
Resolution |
0.01 dB |
Operating Time |
≥ 120 hours |
Battery Type |
(2) AAA batteries |
Dimensions |
4.36 in x 2.66 in x 1.09 in (11.06 cm x 6.76 cm x 2.76 cm) |
Weight |
0.3 lb (136.2 g) |
UPC # |
810053359785 |
