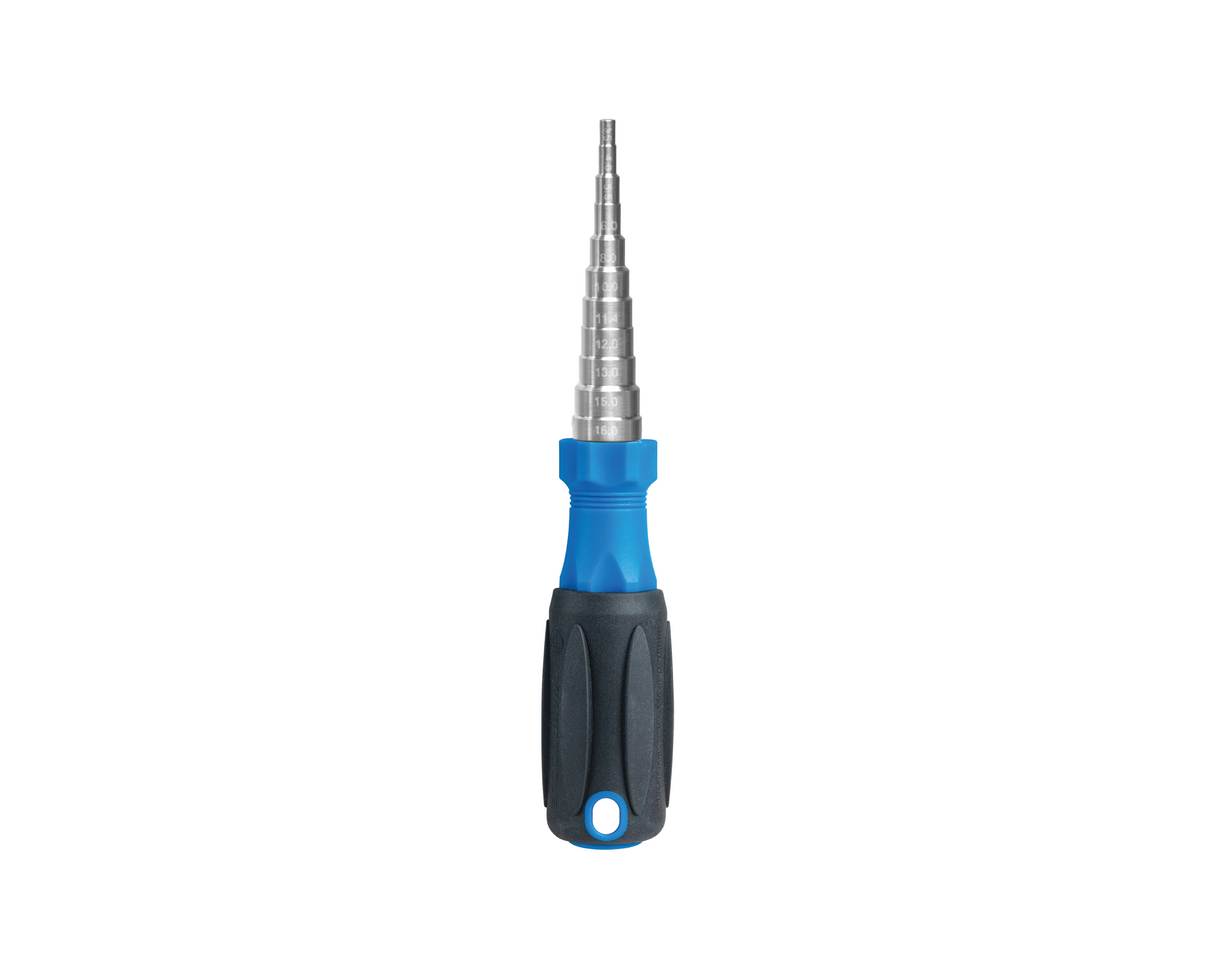

Duct Reforming Tool, 3.5 mm - 16 mm | DRT-316

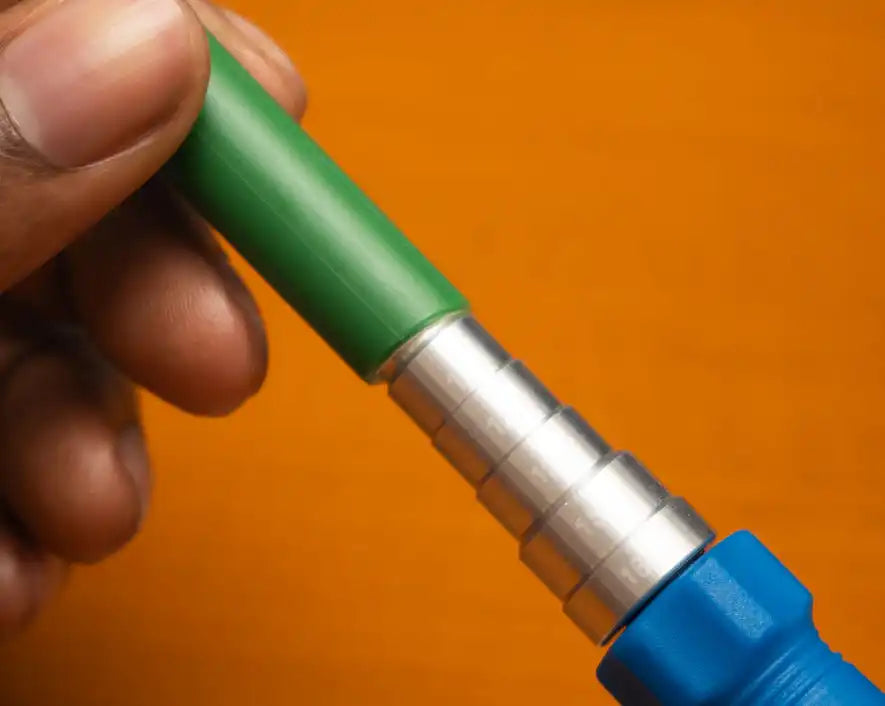

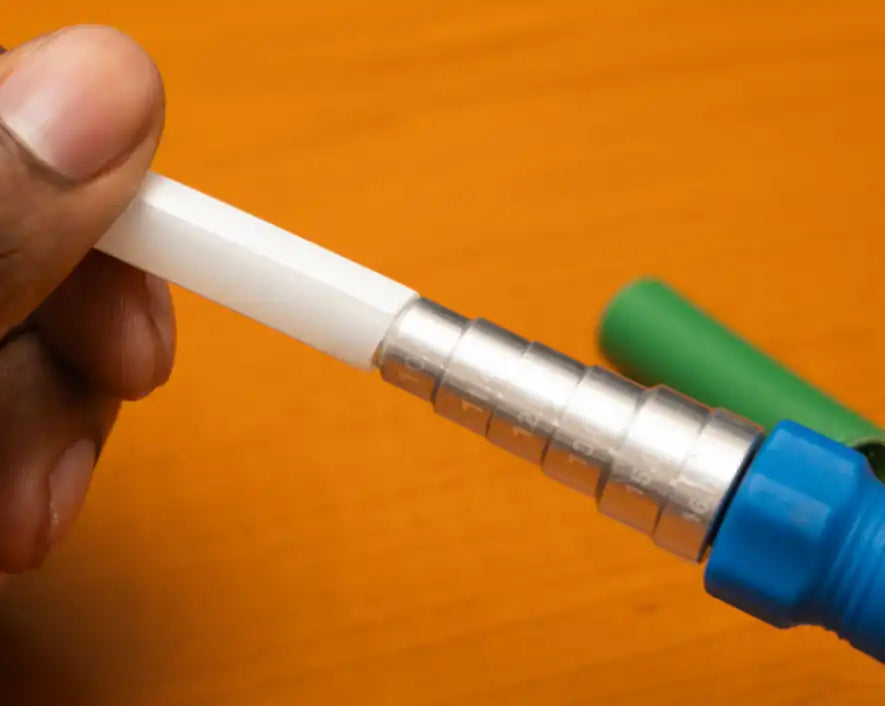

Designed to reform microducts after cutting them, this duct reforming tool is perfect for reshaping the geometry of microducts to prevent blowout stops when connecting them.

• Reforms microducts with inside diameters of 3.5, 4.0, 5.5, 6.0, 8.0, 10.0, 11.4, 12.0, 15.0, and 16.0 mm
• Individual steps with chamfered edges to make it easy to insert into microducts with little force
• Suitable for thin- and thick-walled microducts according to DIN EN 50411-6-1 and DIN EN 60794-5-ff standards
• Comfort grip handle is ergonomic and makes it easy to use

Specifications

• # Steps: 10
• Step Diameters: 3.5, 4.0, 5.5, 6.0, 8.0, 10.0, 11.4, 12.0, 15.0, 16.0 mm
• Dimensions: 6.5 in x 1.22 in x 1.22 in (16.51 cm x 3.1 cm x 3.1 cm)
• Weight: 0.12 lb (55.388 g)
• UPC #: 810132437380
