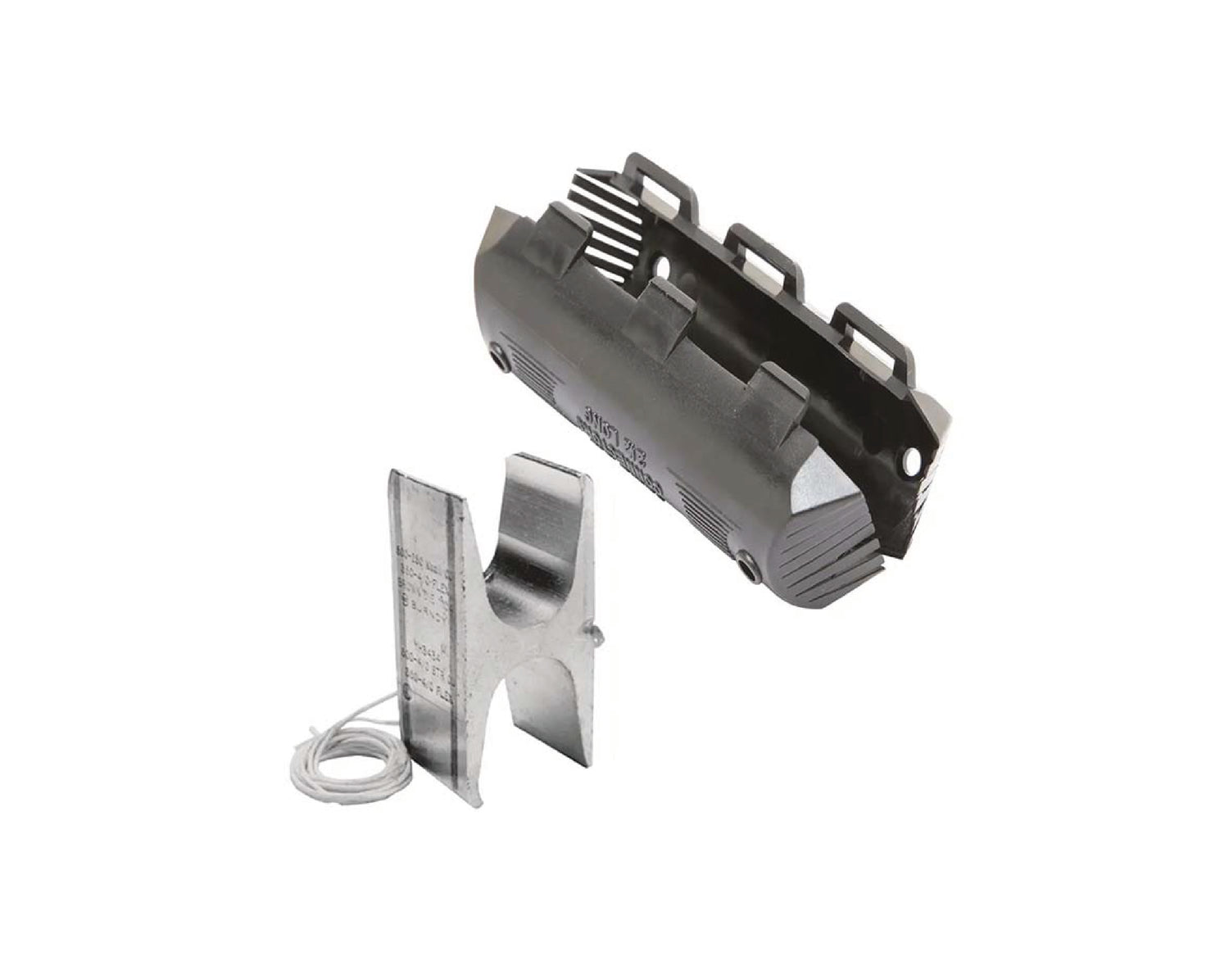

Compression H-Tap | YH3429WC

General

Application: Wire Tap

Catalog Number: YH3429WC

Color Code: Brown

Die Index: 1104

EU RoHS Indicator: Yes

Finish Type:

Material: COPPER

Sub Brand: CRIMPIT

Temperature Rating: 194

Trade Name: CRIMPIT™

Type: Compression Taps

Dimensions

Dimension - Strip Length inch: 1-1/8

Dimension - Width inch: 2.23 in

Electrical Ratings

Voltage - Maximum: 35000

Voltage Rating: 35 kV

Conductor Related

Conductor - Copper Flex G Run: 4/0;250;300;350;400;450;500

Conductor - Copper Flex G Tap: 1/0;2/0;3/0;4/0;250

Conductor - Copper Flex H Tap: 1/0;2/0;3/0;4/0;250

Conductor - Copper Flex I Run: 350 KCMIL-4/0 AWG

Conductor - Copper Flex I Tap: 1/0;2/0;3/0;4/0;250

Conductor - Copper Flex I Tap Range: 4/0 AWG-1/0 AWG

Conductor - Copper Flex K Run: 4/0;250;300;350;400;450;500

Conductor - Copper Flex K Tap: 1/0;2/0;3/0;4/0;250

Conductor - Copper Flex K Tap Range: 4/0 AWG

Conductor - Copper Flex M Run: 4/0;250;300;350;400;450;500

Conductor - Copper Flex M Tap: 1/0;2/0;3/0;4/0;250

Conductor - Copper Str Run: 4/0;250;300;350;400;450;500

Conductor - Copper Str Run Range: 500 KCMIL-4/0 AWG

Conductor - Copper Str Tap: 1/0;2/0;3/0;4/0;250

Conductor - Copper Str Tap Range: 250 KCMIL-1/0 AWG

Conductor - Material: COPPER

Conductor Type: CODE/FLEX

Certifications And Compliance

Buy America(n) Qualified: TAA Compliant (All status valid till December 2024)

EU RoHS Indicator: Yes

Industry Standard(s): UL 486A-486B

Standards - RoHS Compliance Status: CM

UL Listed: Yes

Operational

Temperature Rating: 194
