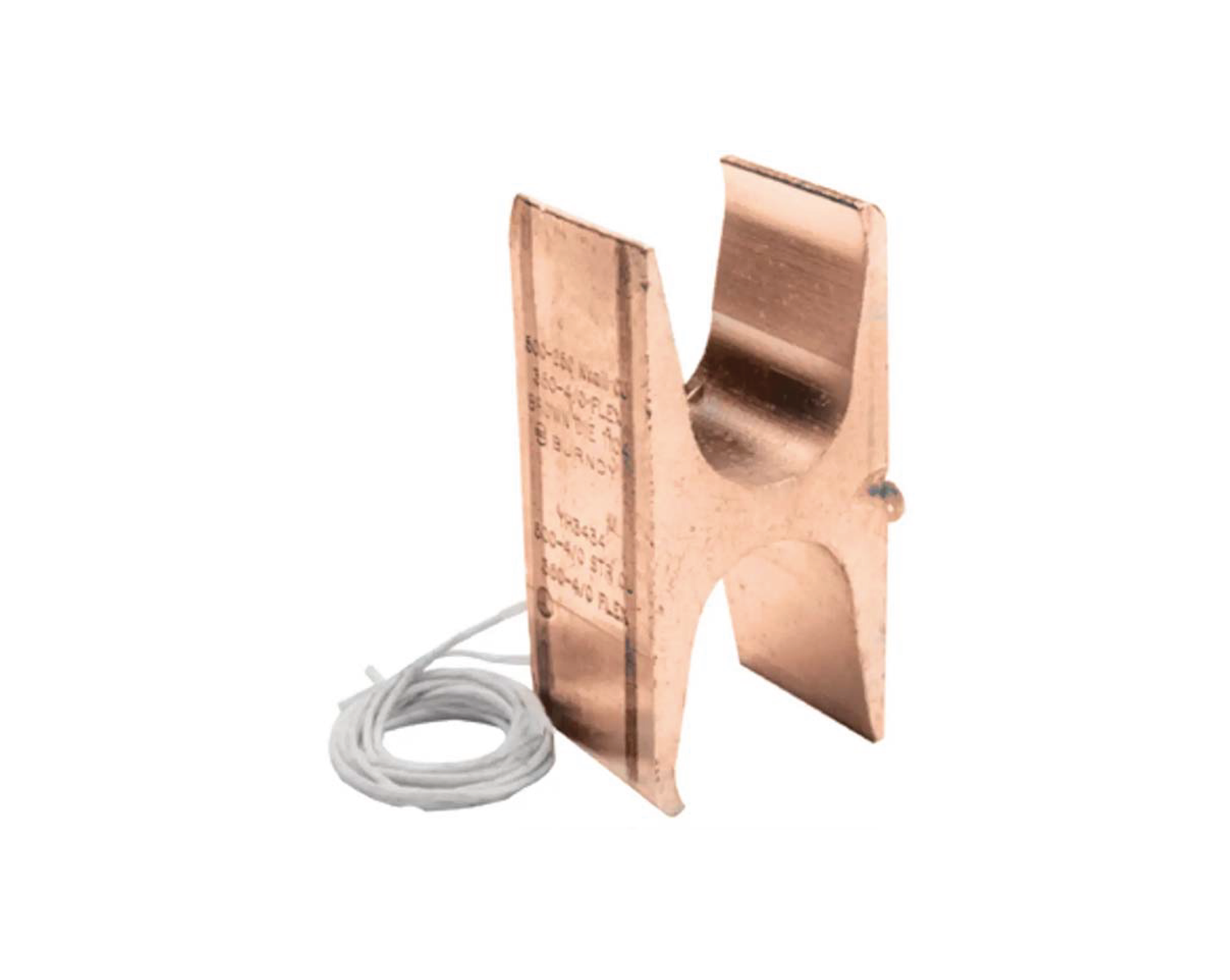

Compression H-Tap | YH3429

General
Application: Wire Tap
Catalog Number: YH3429
Color Code: Brown
Die Index: 1104
EU RoHS Indicator: Yes
Finish Type:
Material: COPPER
Sub Brand: CRIMPIT
Temperature Rating: 194
Trade Name: CRIMPIT™
Type: Compression Taps
UPC: 781810013892

Dimensions
Dimension - Height inch: 2.23 in
Dimension - Strip Length inch: 1-1/8
Dimension - Width fraction: 1.31 in
Dimension - Width inch: 2.23 in

Electrical Ratings
Voltage - Maximum: 35000
Voltage Rating: 35 kV

Conductor Related
Conductor - Copper Flex G Run: 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
Conductor - Copper Flex G Run Range: 4/0 AWG-500 kcmil
Conductor - Copper Flex H Run: 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil
Conductor - Copper Flex H Run Range: 8 AWG-350 kcmil
Conductor - Copper Flex I Run: 350 KCMIL-4/0 AWG
Conductor - Copper Flex I Run Range: 4/0 AWG-500 kcmil
Conductor - Copper Flex I Tap: 1/0;2/0;3/0;4/0;250
Conductor - Copper Flex I Tap Range: 4/0 AWG-1/0 AWG
Conductor - Copper Flex K Run: 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
Conductor - Copper Flex K Run Range: 4/0 AWG-500 kcmil
Conductor - Copper Flex K Tap: 1/0;2/0;3/0;4/0;250
Conductor - Copper Flex K Tap Range: 4/0 AWG
Conductor - Copper Flex M Run: 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
Conductor - Copper Flex M Run Range: 4/0 AWG-500 kcmil
Conductor - Copper Flex M Tap: 1/0;2/0;3/0;4/0;250
Conductor - Copper Str Run: 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
Conductor - Copper Str Run Range: 500 KCMIL-4/0 AWG
Conductor - Copper Str Tap: 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
Conductor - Copper Str Tap Range: 250 KCMIL-1/0 AWG
Conductor - Material: COPPER
Conductor Type: CODE/FLEX

Certifications And Compliance
Buy America(n) Qualified: TAA Compliant (All status valid till December 2025)
EU RoHS Indicator: Yes
Industry Standard(s): UL 486A-486B
Standards - Industry Standards Met: UL467
Standards - RoHS Compliance Status: CM
UL Listed: Yes

Operational
Temperature Rating: 194

Logistics
Minimum Pack Quantity: 1
